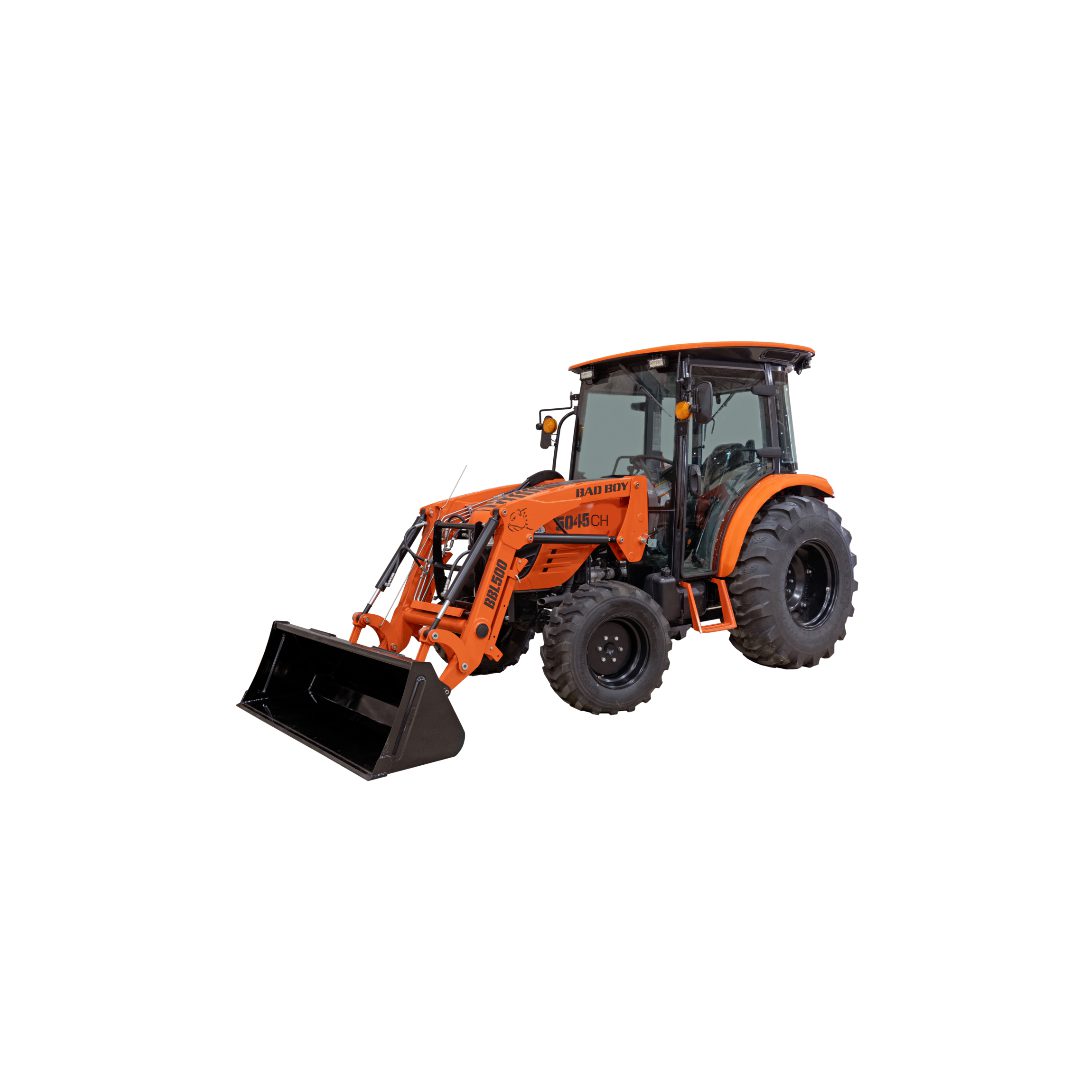

Bad Boy 5045CH

The Bad Boy 5045CH Tractor delivers powerful performance in a compact, durable design. With a 48-horsepower engine, it’s built to handle tough terrain and heavy workloads, making it ideal for a wide range of tasks—from farming to landscaping. Designed for both professionals and homeowners, the 5045CH combines rugged construction with easy operation, offering the perfect balance of strength, versatility, and efficiency in a small package.

Contact us
Get Quote
Share On Facebook
Share On X
Print
Share Via Email

The specifications below may not represent all the available trim levels. Speak with a Sales Professional for more information.

Call Today at 903-527-4449

Specs

ENGINE                                               HYDRAULIC SYSTEM

Type: 4-cylinder, Water-cooled                                               Implement pump (gpm): 10.7

Model: A2300N3-UTR_4                                                        Steering pump (gpm): 5.0

Engine HP (Gross): 48                                                           Total flow (gpm): 15.7

PTO HP: 38.4                                                                         Category, 3 pt hitch: CAT 1

Rated Speed (RPM): 2600                                                    Hitch Lift capacity (lb.): 3,306

Displacement (cu in): 139.5                                                   Lift control type: Manual Position

Fuel Tank Capacity (gal): 11.8

Alternator: 12V – 70 Amps

DRIVE TRAIN                                   DIMENSION

Transmission: Hydrostatic Drive                                        Overall length with 3pt (in.): 127.4

No. of Speeds: 4 Ranges                                                   Wheelbase (in.): 71.1

Brakes: Wet, Multi Disc                                                      Min. overall width with IND tires (in.): 15.5

Steering: Hydrostatic Power Steering                                Height to top of ROPS (in.): 97.0

PTO                                                  TIRE SIZE

Type: Independent                                                             Industrial Front/Rear: 9.5 – 16.0

Mid PTO: Standard (2000 rpm)                                         Turf Front/Rear: 13.6 – 26.0

Rear PTO: Standard (540 rpm)

WEIGHT

Total weight without ballast (lbs): 4,349

Attachments

BBL500 LOADER
  • Maximum Lift Height (@ pivot point) (In): 107.7
  • Maximum Lift Height under lever bucket (In): 98.6
  • Clearance with bucket dump (In): 82.3
  • Reach at maximum lift height (In): 16.5
  • Maximum dump angle: 46
  • Reach with bucket on ground (In): 67.0
  • Maximum rollback angle: 34
  • Digging Depth (In): 2.4
  • Overall, Height in carry position: 55.3
  • Depth of attachment (In): 20.9
  • height of attachment (In): 21.1
  • length of attachment (to pivot pin): 27.2
BBH500 BACKHOE
  • Digging Depth (In): 91.2
  • Reach from center line of Swing Pivot (In): 123.6
  • Loading Height (Bucket @ 60 Degrees) (In): 69.3
  • Maximum Leveling Angle: 10
  • Swing Angle: 180
  • Transport overhang (In): 49.2
  • Bucket Rotation: 180
  • Stabilizer Spread (Down Position) (In): 88.8
  • Stabilizer Spread (Raise Position) (In): 68.4
  • Angle Departure: 21
