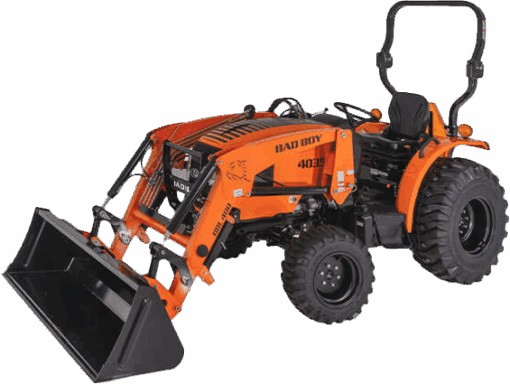

Bad Boy 4035H

The Bad Boy 4035H is a compact powerhouse built for serious work. With a 35-horsepower engine and durable construction, it’s designed to handle everything from farming to landscaping with ease.

This Bad Boy tractor combines strength, versatility, and user-friendly controls—making it ideal for both homeowners and professionals. Whether you’re tackling tough terrain or daily chores, the Bad Boy 4035H delivers reliable performance in a compact, easy-to-maneuver package.

The specifications below may not represent all the available trim levels. Speak with a Sales Professional for more information.

Call Today at 903-527-4449

Specs

ENGINE                                               HYDRAULIC SYSTEM

Type: 3-cylinder, Water-cooled                                               Implement pump (gpm): 8.2

Model: A2300N2-UTR_4                                                        Steering pump (gpm): 4.4

Engine HP (Gross): 35                                                           Total flow (gpm): 12.6

PTO HP: 29.5                                                                         Category, 3 pt hitch: CAT 1

Rated Speed (RPM): 2600                                                    Hitch Lift capacity (lb.): 2,425

Displacement (cu in): 104.5                                                   Lift control type: Manual Position

Fuel Tank Capacity (gal): 7.1

Alternator: 12V – 50 Amps


DRIVE TRAIN                                   DIMENSION

Transmission: Hydrostatic Drive                                        Overall length with 3pt (in.): 134.88

No. of Speeds: 3 Ranges                                                   Wheelbase (in.): 65.7

Brakes: Wet, Multi Disc                                                      Min. overall width with IND tires (in.): 13.1

Steering: Hydrostatic Power Steering                                Height to top of ROPS (in.): 97.0


PTO                                                  TIRE SIZE

Type: Independent                                                             Industrial Front/Rear: 28 x 8.50 – 15

Mid PTO: Standard (2000 rpm)                                         Turf Front/Rear: 43 x 16.00 – 20

Rear PTO: Standard (540 rpm)


WEIGHT

Total weight without ballast (lbs): 3,164

Attachments

BBL400 LOADER

  • Bucket Size (In): 62
  • Maximum Lift (In): 104
  • Dig Depth (In): 1.8
  • Lift Capacity (@piviot pin) (Lbs.): 2,200
  • Breakout Force Lbs.): 3,660

BBH400 BACKHOE

  • Bucket Size (In): 16
  • Type: Subframe-Mounted, quick Attach
  • Maximum Dig Depth (In): 92.2
  • Dig Force Bucket (Lbs.): 4,380
